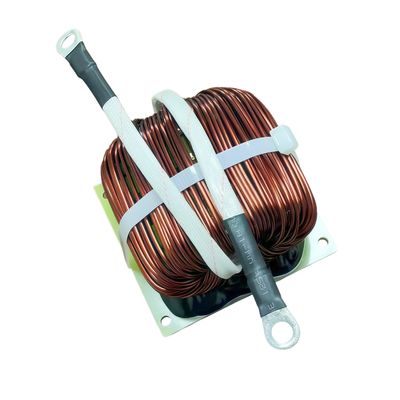

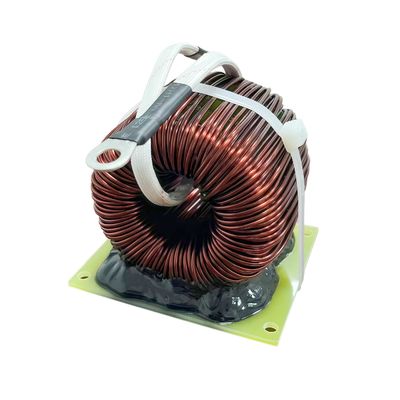

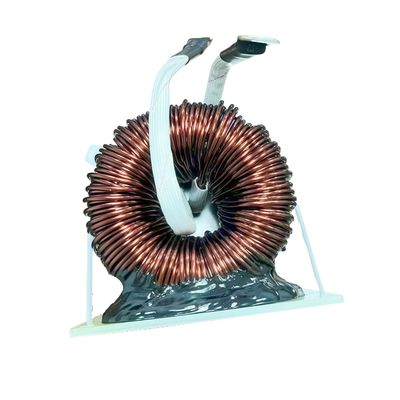

1mH 60A Large Toroidal Inductor Coil High Current 1 Winding Double Magnetic Ring

Markenbezeichnung:	ZXY
Modellnummer:	ZXY
MOQ:	Negotiable
Preis:	Verhandlungsfähig
Verpackungsdetails:	Ausgestopft
Zahlungsbedingungen:	T/T

Ausführliche Information

Beschreibung des Produkts

Ausführliche Information

Place of Origin:

Huizhou.China

Zertifizierung:

RoHS、ISO9001、CE

Item Weight:

2.1kg

Supplier Type:

ZXY

Shape:

Toroidal

Key Word:

common mode filter inductor

Winding:

Magnetic Ring:

Beschreibung des Produkts

1mH 60A Large Toroidal Inductor Coil High Current 1 Winding Double Magnetic Ring

1.Product Description

This **1mH 60A Customized Large Toroidal Inductor Coil** is designed for high-current applications, featuring a **double magnetic ring structure** for enhanced efficiency and thermal stability. With a **single-winding (1-turn) design**, it minimizes DC resistance (DCR) while supporting **continuous 60A current** and **1mH inductance**, making it ideal for **power converters, inverters, EV charging systems, and industrial motor drives**. The **toroidal shape reduces EMI**, and its **high-temperature-resistant construction** ensures reliable performance in demanding environments. Customizable core materials (e.g., ferrite or powdered iron) allow optimization for low-loss or high-saturation applications.

1. * * High current and high load * * - Supports * * 60A continuous current * *, suitable for high-power conversion, inverters, and industrial drive systems.

2. * * Double magnetic ring structure * * - optimizes magnetic circuit distribution, reduces eddy current losses, improves efficiency and temperature rise performance.

3. * * 1mH high inductance stable output * * - maintains inductance consistency over a wide frequency range and suppresses current ripple.

4. * * Single winding low resistance design * * - reduces direct current resistance (DCR), lowers heat generation, and improves energy efficiency.

5. Ring shaped magnetic core with low EMI - The enclosed magnetic circuit structure effectively suppresses electromagnetic interference and is suitable for high-density power supply systems.

Suitable for harsh scenarios such as new energy, electric vehicles, industrial power supplies, etc., supporting customized magnetic core materials (such as iron silicon aluminum, nanocrystals, etc.).

2.Performance Characteristics

Parameter	Specification	Remarks
Inductance (L)	1 mH (±10% or custom tolerance)	Measured at 1 kHz, 0.1 V
Rated Current (I<sub>RMS</sub>)	60 A (continuous)	Temperature-dependent
Saturation Current (I<sub>sat</sub>)	≥80 A (20% inductance drop)	Core material dependent
DC Resistance (DCR)	<0.5 mΩ (typical)	Low-loss design
Operating Frequency	Up to 100 kHz (depends on core material)	Ferrite: higher freq. / Powder core: higher current
Core Material	Double magnetic ring (Fe-Si-Al / Nanocrystalline / High-flux powder)	Customizable
Winding Type	Single-layer, 1-turn (heavy-duty foil or Litz wire)	Low skin effect
Temperature Range	-40°C to +150°C	Thermal Class H possible
Core Losses	Low hysteresis & eddy current losses	Optimized for high efficiency
EMI Performance	Excellent (toroidal structure minimizes leakage flux)	Reduced noise in circuits
